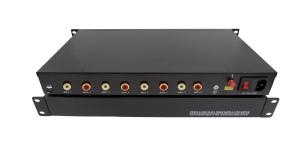

8 channels stereo audio to fiber extender,RCA audio fiber converter,left and right channel

Place of Origin : ShenZhen

Brand Name : beyond

Certification : CE,FCC

Model Number : BY-RCA-8A-SM008

MOQ : 1 pair

Price : Negotiable

Packaging Details : standard packing for export

Delivery Time : 3-7 working days after payment

Payment Terms : T/T,100% payment before production

Supply Ability : 10000 pairs per month

Contact Now

Overview:

Audio over Fiber series support 2 Channel simplex 24-bit digitally encoded broadcast quality audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength

1310nm&1470nm~1610nm

Output Power

-14~ -8dBm / -5~0dBm

Optic fiber

50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity

-30dBm

Optical connector

FC,ST,SC (optional)

Distance

0~2KM (MM) / 0~20KM (SM)

Audio

Input/output Impedance

600ohm(unbalance)

Max input/output voltage

3.0Vp-p

Frequency Response

10 Hz～29kHz @±3dB

SNR

> 70dB

Connector

RCA

Electrical & Mechanical

Input Power Requirements:

DC 5V@2A

Power Adapter:

AC 90V~240V

Power Consumption:

< 5W

Stand-Alone Dimensions:

104mm × 104mm × 28mm

Shipping Weight:

(include Transmitter & Receiver ) 0.8kg

Environmental

Operating Temperature:

-20°C ~ +75°C

Storage Temperature:

-40°C ~ +85°C

Relative Humidity:

0% ~ 95% (non-condensing)

MTBF:

>100,000 hours

e:10.5000pt;mso-font-kerning:1.0000pt;" >

>100,000 hours
